Comprehensive Clinical Chemistry Results for Point-of-Care Diagnostics
The VETSCAN VS2 is amazingly simple and intuitive. It features an advanced user interface and precise reference laboratory quality results in 12 minutes from 100 μl of whole blood, serum or plasma. The VETSCAN VS2 is ideal for veterinary practices, hospitals and research laboratories.
Simple Operation

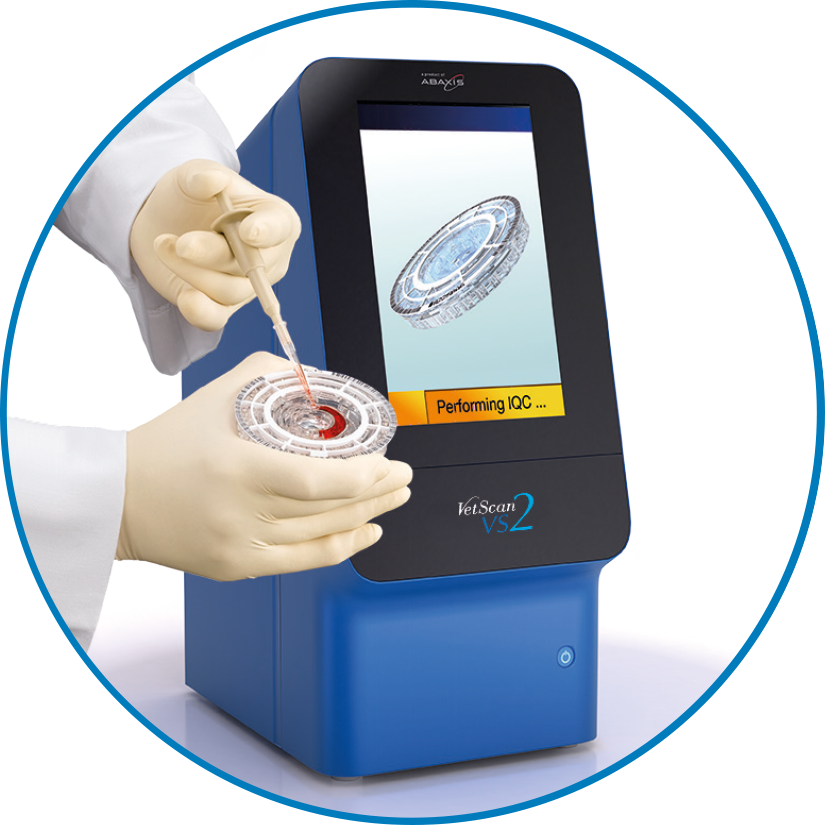

Add sample

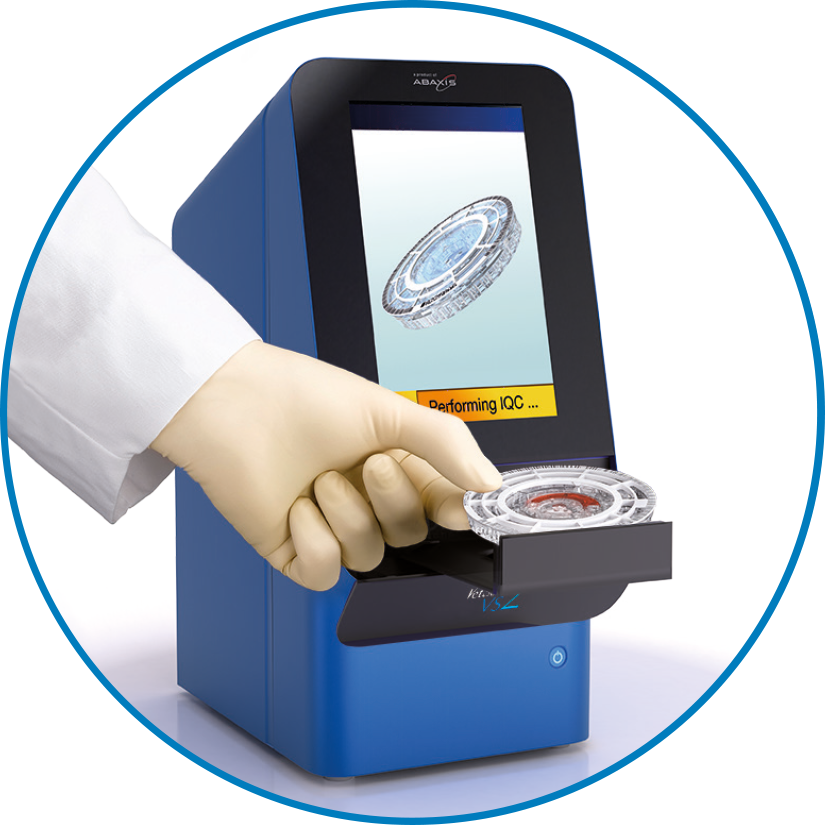

Insert rotor

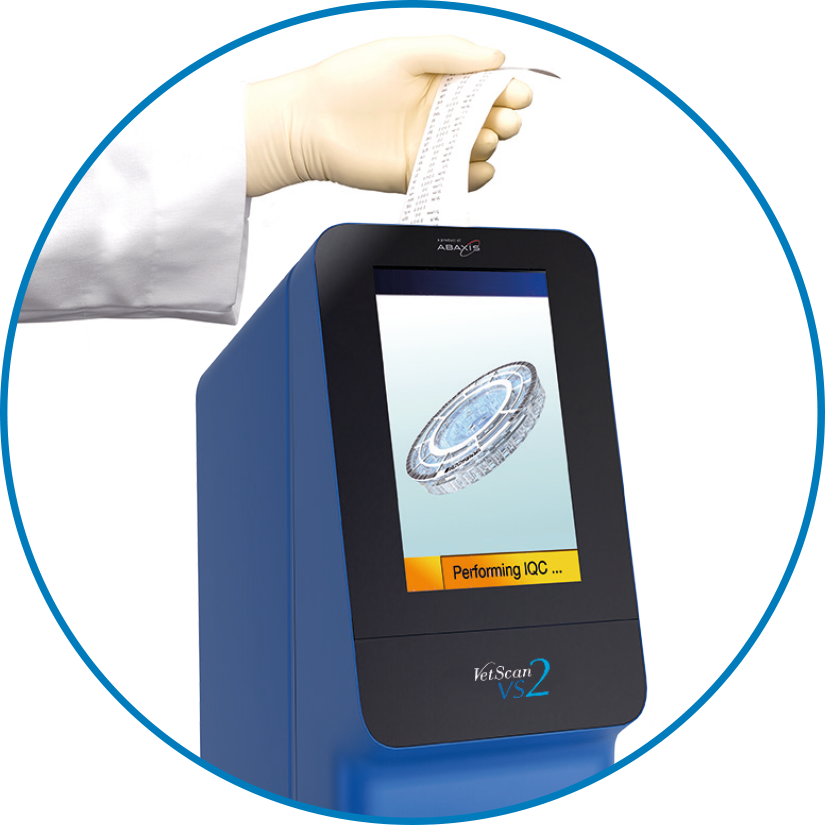

Read results
Accurate Results
The VETSCAN VS2 chemistry analyzer has a sophisticated intelligent Quality Control (iQC®) system that ensures quality and dependable results. No more worrying about running controls and calibrations as iQC monitors the analyzer, rotor and sample before and during every analysis to ensure reliable results.
All Components Check
- Analyzer
- Reagents
- Sample
Test Portfolio
| Comprehensive | Pre-Anesthetic + Critical Care | Organ Specific | Specialty Testing | Species-Specific |
 Comprehensive Diagnostic Profile |
 Electrolyte Plus |
 Kidney Profile Plus |
 Phenobarbital Profile |
 Canine Wellness Profile |
 Preventive Care Profile Plus |
 Prep Profile II |
 Mammalian Liver Profile |
 T4/Cholesterol Profile |
 Avian/Reptilian Profile Plus |
 Critical Care Plus |
 Equine Profile Plus |
|||
 Large Animal Profile |

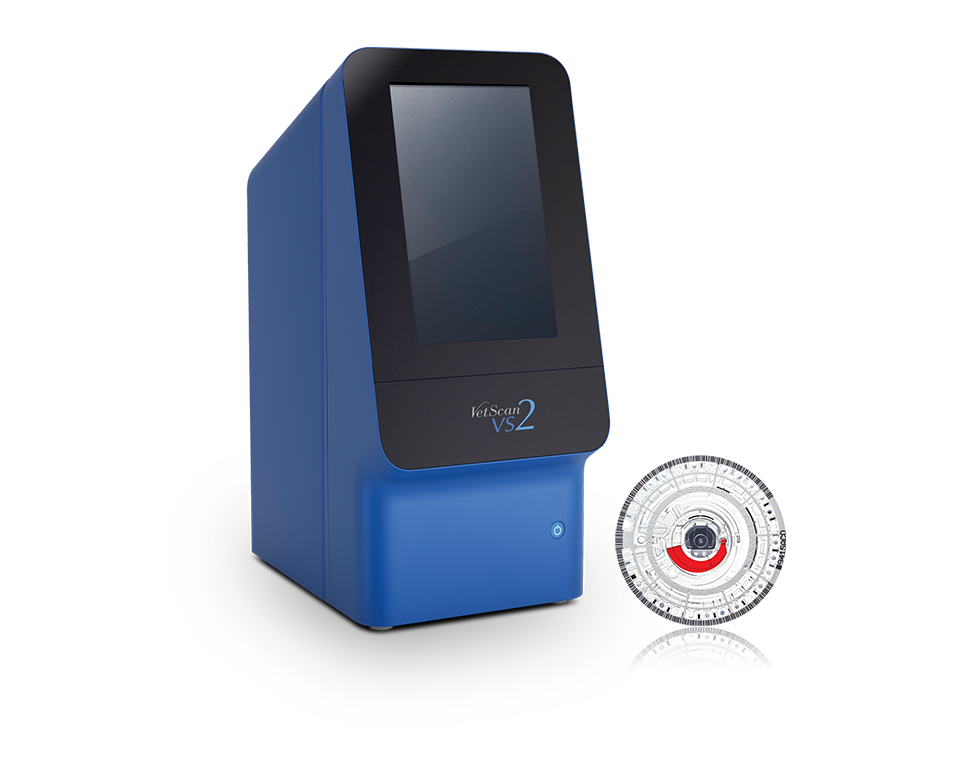

VETSCAN VS2 profiles are conveniently packaged as single-use rotors. Each reagent rotor contains a diluent and all the tests necessary to perform a complete multi-chemistry blood analysis. Learn more about the Test Portfolio.
Further Diagnostic Products
| Chemistry + Hematology | Urinalysis | Specialty |
|---|---|---|
| › VETSCAN VS2 Chemistry Analyzer | › VETSCAN UA Urine Analyzer | › VETSCAN VSpro Specialty Analyzer |
| › VETSCAN HM5 Hematology Analyzer | › VETSCAN SA Sediment Analyzer | › VETSCAN Rapid Tests + VUE |
| › i-STAT Alinity v Handheld Analyzer | › VETSCAN HDmicroscope | |
| › VETSCAN FUSE | ||
| › AlphaTRAK Glucose Meter |
MM-05195
13 Profiles to Choose From
Test chemistry and electrolyte analytes on a single profile. Have access to specialty tests including T4, Bile Acids, tCO2, and Phenobarbital on one analyzer.
Comprehensive
Comprehensive Diagnostic Profile
The Comprehensive Diagnostic Profile is ideal for providing a complete chemistry and electrolyte analysis for pre-anesthetic, general health, ill patient, geriatric and wellness testing. Inoffice testing enables the veterinarian to evaluate a pet‘s general health and become aware of any health problems immediately.
ALB
ALP
ALT
AMY
BUN
Ca
CRE
GLOB
GLU
K+
Na+
PHOS
TBIL
TP
Preventive Care Profile Plus
The Preventive Care Profile Plus is ideal for providing a thorough chemistry and complete electrolyte analysis for preanesthetic, general health, ill patient, geriatric and wellness testing. The tests included provide clinicians with information necessary to obtain immediate diagnosis, narrow a diagnostic rule-out list, and offer vital information needed to determine if additional tests or procedures are required.
ALB
ALP
ALT
AST
BUN
Ca
Cl-
CRE
GLOB
GLU
K+
Na+
TBIL
tCO2
TP
Pre-Anesthetic + Critical Care
Electrolyte Plus
The Electrolyte Plus is ideal for regulation of acid/base and osmotic balance for baseline on hospitalized patients. The Electrolyte Plus provides important information for monitoring fluid therapy. It also can be used to perform recheck examinations for certain conditions.
Cl-
K+
Na+
tCO2
Prep Profile II
The Prep Profile II is ideal for a basic health screen during pre-anesthetic evaluations, wellness testing in young, healthy patients or as a re-check profile for some disease states. The Prep Profile II provides important information for renal, hepatic, and diabetic patients that are being hospitalized, monitored, or undergoing long-term treatment.
ALP
ALT
BUN
CRE
GLU
TP
Critical Care Plus
The Critical Care Plus is ideal for serial testing, rechecks, fluid therapy, and monitoring hospitalized patients.
ALT
BUN
Cl-
CRE
GLU
K+
Na+
tCO2
Organ Specific
Kidney Profile Plus
The Kidney Profile Plus is ideal for kidney evaluation and monitoring in cats and dogs of all ages, as well as implementing and streamlining your renal function monitoring protocol.
ALB
BUN
Ca
Cl-
CRE
GLU
K+
Na+
PHOS
tCO2
Mammalian Liver Profile
The Mammalian Liver Profile is ideal for obtaining baseline liver values, diagnosis and monitoring of hepatic disease and monitoring hepatic function while administering nonsteroidal anti-inflammatory drugs (NSAIDs) or other potentially hepatotoxic medications. Hepatic disease is frequently a diagnostic challenge. The utilization of easy-to-use, in-office testing that includes bile acids assist with this challenge.
ALB
ALP
ALT
BA
BUN
CHOL
GGT
TBIL
Specialty Testing
Phenobarbital Profile
The Phenobarbital Profile is a cost-effective rotor that evaluates the level of phenobarbital, and provides additional liver values all in one panel.
ALB
ALP
ALT
AST
BUN
GGT
PHB
TBIL
T4/Cholesterol Profile
The T4/Cholesterol Profile is ideal for routine screening of hypothyroidism in dogs and diagnosis of hyperthyroidism in cats, titrating and monitoring patients on thyroid hormone replacement therapy, or patients being treated for hyperthyroid disease.
T4
CHOL
Species-Specific
Canine Wellness Profile
The Canine Wellness Profile is ideal for simultaneously performing a comprehensive wellness chemistry panel and testing for heartworm antigen on canine patients more than 6 months of age, implementing a comprehensive wellness program, or streamlining existing wellness programs and reducing technician time.
ALB
ALP
ALT
BUN
Ca
CHW
CRE
GLOB
GLU
PHOS
TBIL
TP
Avian/Reptilian Profile Plus
The Avian/Reptilian Profile Plus is ideal for measuring analytes that represent the most important areas of concern in avian and reptilian patients.
ALB
AST
BA
Ca
CK
GLOB
GLU
K+
Na+
PHOS
TP
UA
Equine Profile Plus
The Equine Profile Plus is ideal for routine equine checkups, wellness testing, ill patient diagnostics and pre-purchase examinations for equine hospitals, ambulatory practitioners, critical care units and mixed animal hospitals.
ALB
AST
BUN
Ca
CK
CRE
GGT
GLOB
GLU
K+
Na+
TBIL
tCO2
TP
Large Animal Profile
The Large Animal Profile is ideal for herd health assessment and monitoring, and as a prognostic indicator and diagnostic tool for beef and dairy cattle. Managing a herd and its health is critical for the market and protecting its value, while limiting costs to manage such a large investment.
ALB
ALP
AST
BUN
Ca
CK
GGT
GLOB
Mg
PHOS
TP
Learn more about the VETSCAN VS2 Specifications.
Further Diagnostic Products
| Chemistry + Hematology | Urinalysis | Specialty |
|---|---|---|
| › VETSCAN VS2 Chemistry Analyzer | › VETSCAN UA Urine Analyzer | › VETSCAN VSpro Specialty Analyzer |
| › VETSCAN HM5 Hematology Analyzer | › VETSCAN SA Sediment Analyzer | › VETSCAN Rapid Tests + VUE |
| › i-STAT Alinity v Handheld Analyzer | › VETSCAN HDmicroscope | |
| › VETSCAN FUSE | ||
| › AlphaTRAK Glucose Meter |
MM-05195

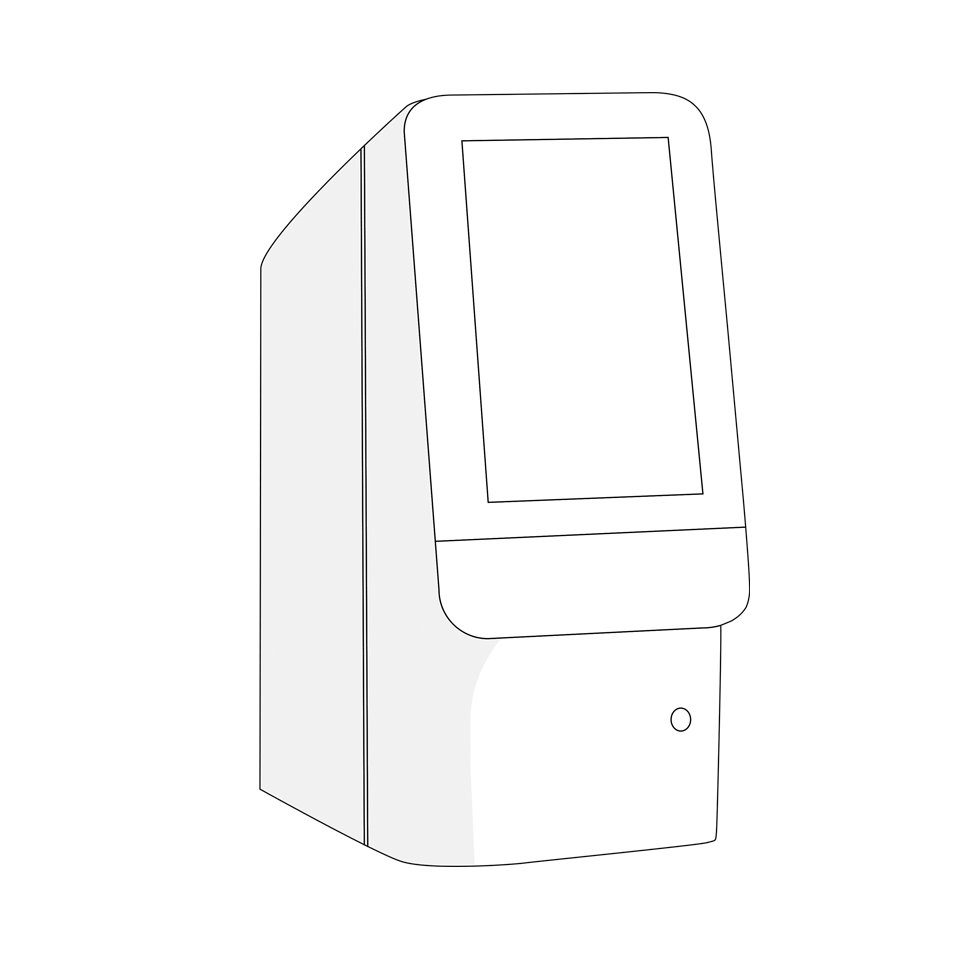

Size
Height 32.4 cm / 12.75 in
Width 15.3 cm / 6 in
Depth 20.3 cm / 8 in
Weight 5.3 kg / 11.6 lbs
Key Facts at a Glance
- Chemistry, Electrolyte, Immunoassay and Blood gas with one instrument
- Accuracy comparable to reference laboratories
- Speed: 12 minutes to results
- Intelligent Quality Control (iQC®)
- 100 µl sample size
- whole blood
- serum
- plasma
- Detects hemolysis, lipemia and icterus
- Specialty tests available
- Low Maintenance
- no calibration and quality control needed
- no sample preparation in most instances – test whole blood
- Set and archive reference ranges
- Complete portability
- Connectivity
Details
| Mode of Operation | Continuous |
| Power Requirements | 100-240 volts AC, 50-60 Hz; or 15 volts DC, 5.0 A Main Unit: 1.1 to 0.45 amps, 15 volts DC, 5.0 A |
| Protection Against Ingress of Fluids | Ordinary Equipment (IPX0) |
| Ambient Operation Temperature | 15-32° C (59-90° F) |
| Humidity | 8 - 80%, non-condensing |
| Reaction Temperature | 37° C (98.6° F) |
| Thermal Protection Rating | 70° C (158° F) |
| Main Supply Voltage | Fluctuations not to exceed ± 10% of the nominal voltage |
| Transient Overvoltages | Installation Category II in accordance with UL 61010A-1 first edition Annex J |
| Pollution | Degree 2 in accordance with IEC 664 |
